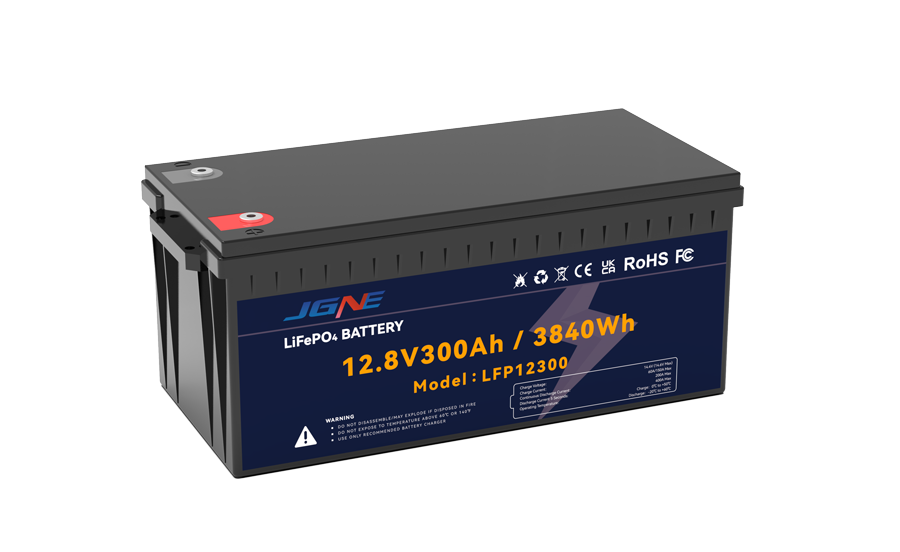

12.8V 300Ah Lithium Battery

Lightweight, high-performance, safe and reliable Lithium Marine Battery.

Nominal voltage: 12.8V

Nominal capacity: 300Ah

Cell type / Chemistry: Cylindrical – LiFePO4

Dimensions (LxWxH): 522*240*218mm

Weight: 28.8±0.1Kg

Cycle life: ≥2,000@0.2C（80%DOD）

Model	Charging current	Max Discharge current	Cycle life	Size	Weight
12.8V7Ah	1.4A	7A	≥2000times, the residual capacity ≥ 80%	5.92.53.7″ 1516595mm	2Ibs 0.94kg
12.8V10Ah	2A	10A	≥2000times, the residual capacity ≥ 80%	5.92.53.7″ 1516595mm	2.6Ibs 1.2kg
12.8V12Ah	2.4A	12A	≥2000times, the residual capacity ≥ 80%	5.93.83.7″ 1519895mm	3.0lbs 1.39kg
12.8V16Ah	8A	16A	≥2000times, the residual capacity ≥ 80%	5.93.83.7″ 1519895mm	3.8lbs 1.73kg
12.8V20Ah	4A	20A	≥2000times, the residual capacity ≥ 80%	7.13.06.5″ 18176.5167mm	5.9lbs 2.7kg
12.8V30Ah	15A	30A	≥2000times, the residual capacity ≥ 80%	7.65.16.1″ 195130157mm	8.5lbs 3.9kg
12.8V50Ah	25A	50A	≥2000times, the residual capacity ≥ 80%	8.95.48.2″ 228138209mm	13.8lbs 6.3kg
12.8V100Ah	20A	100A	≥2000times, the residual capacity ≥ 80%	12.96.78.3″ 328172212mm	27.7lbs 12.6kg
12.8V200Ah	40A	120A	≥2000times, the residual capacity ≥ 80%	20.59.48.5″ 522240218mm	56.4lbs 25.6kg

12.8V 30Ah lithium battery — 12.8V 30Ah Lithium battery

12.8V 20Ah lithium battery — 12.8V 20Ah Lithium Battery

12.8V16Ah.4 — 12.8V 16Ah Lithium Battery

12.8V12Ah.4 — 12.8V 12Ah Lithium Battery

12.8V10Ah.4 — 12.8V 10Ah Lithium battery

25.6V100Ah.4 — 25.6V 100Ah Lithium Battery

12.8V400Ah.4 — 12.8V 400Ah Lithium Battery

Automotive-Grade Cells

Utilize our made LiFePO4 battery cell are Automotive -Grade, ensure superior quality and higher energy density, supporting 100% Depth of Discharge (DOD) and 100% State of Charge (SOC).

Long Lifespan and High Efficiency

Lithium Marine Battery are maintenance-free and cost-effective in the long run, boasting longer lifespans and higher efficiency.

Lightweight Design

Lithium battery packs are about two-thirds the size and one-third the weight of lead-acid batteries, making them easier to carry and perfect for outdoor camping and indoor installations.

Built-in Battery Management System (BMS)

LFP batteries have a significantly longer lifespan compared to lead-acid batteries. While lead-acid batteries typically last around 3-5 years, LFP batteries can last 10 years or more, depending on usage and maintenance.

Flexible Configuration (Max 4S4P)

Supports flexible series and parallel configurations, up to 4S4P, providing up to 40.96 kWh of energy.

Environmental Benefits

Unlike lead-acid batteries, which contain hazardous lead and can pollute if not disposed of properly, lithium batteries are produced in an eco-friendly manner without harmful emissions.
