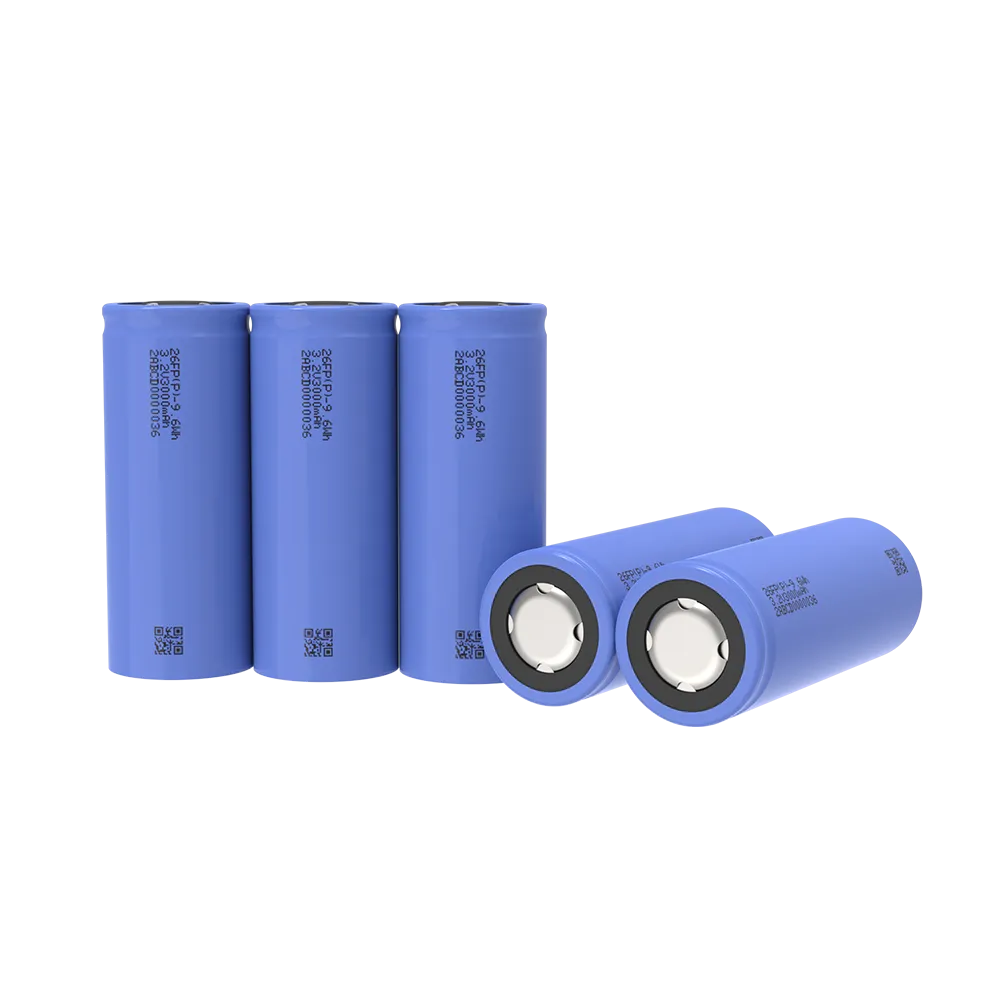

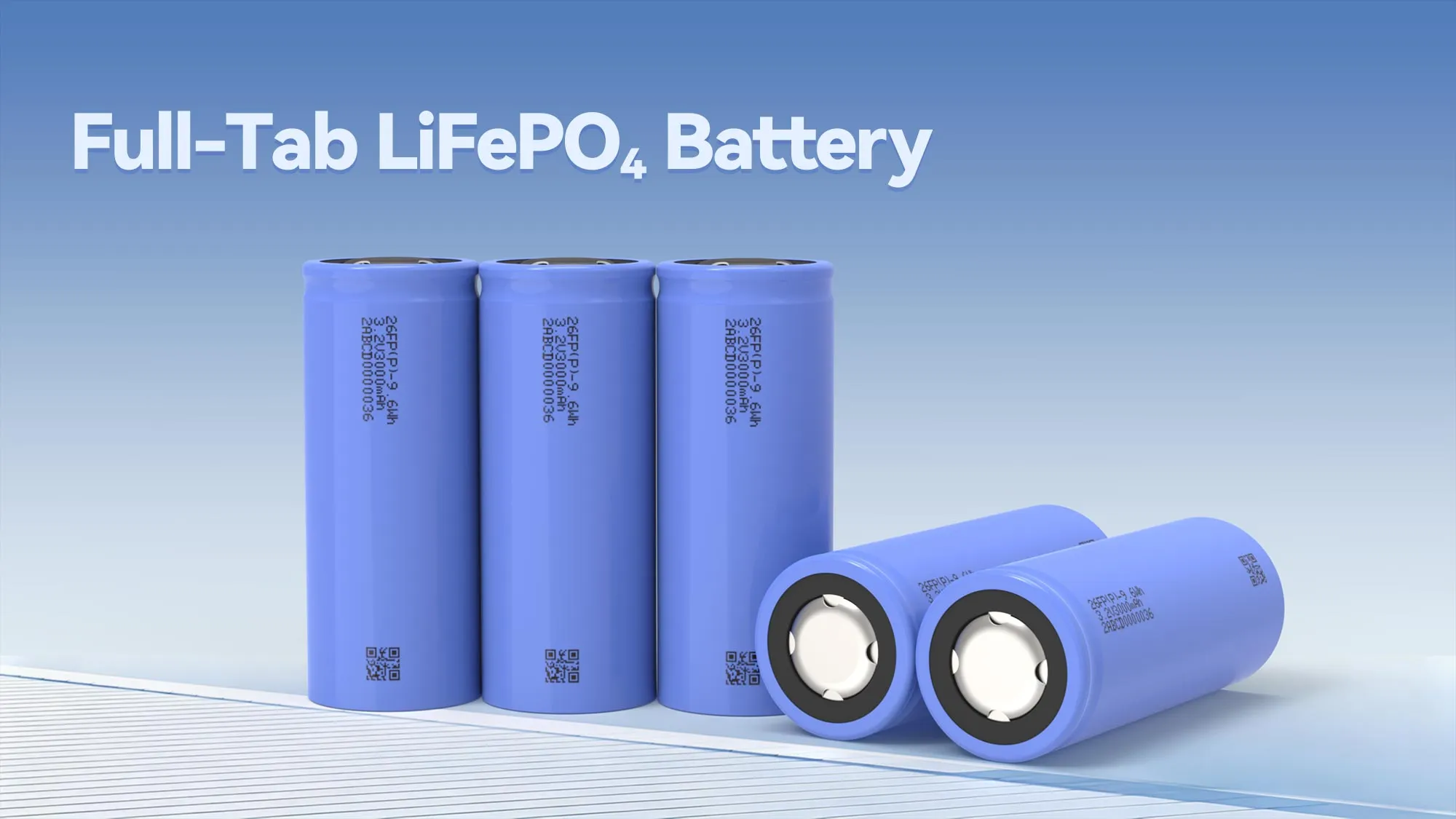

Lightweight, high-rate, safe and reliable Full-Tab Lithium Iron Phosphate (LiFePO4/LFP) battery.
Nominal voltage: 3.2V
Nominal capacity: 3.0Ah
Cell type / Chemistry: Cylindrical – LiFePO4
Dimensions (DxH): (26.45)×(65.7±0.3)mm
Weight: 82g
Cycle life: ≥3,000@1C (100%DOD)
Certificate:UN38.3, MSDS, CE, CB, RoHS, REACH, IEC62133
Goldencell Full-Tab 26650P-3000mAh-3.2V LiFePO₄ battery cells are designed for battery applications requiring high power output, low internal resistance, fast charging capability and reliable cycle performance.
Featuring a full-tab electrode design, this 26650 cylindrical LiFePO₄ cell is optimized for efficient current transmission and high-power battery pack applications. With a nominal voltage of 3.2V, a nominal capacity of 3000mAh, ≤5mΩ AC internal resistance, up to 60A continuous discharge current and pulse discharge current for 150A 5S, it provides a powerful cell solution for demanding energy storage and backup power systems.
For BBU, UPS and industrial backup systems, battery cells need to respond quickly when high rate is required.The Goldencell Full-Tab 26650 cell features an AC internal resistance of ≤5mΩ, helping reduce internal power losses during charging and discharging.
LiFePO₄ chemistry, cylindrical cell construction and appropriate BMS protection support stable and reliable battery pack operation.
Fast charging helps reduce downtime in backup power and high-cycle applications. The Full-Tab 26650P-3000mAh-3.2V cell supports a maximum charging current of 9A at 25°C, enable efficient charging for appropriately designed battery packs.
Goldencell LiFePO₄ battery cells are designed for repeated charge and discharge operation.The Full-Tab 26650 cell is rated for 3000 cycles at 100% DOD, with capacity retention of ≥80% under 1C charge/1C discharge test conditions.
The Full-Tab 26650 LiFePO₄ cell supports high-power BBU battery packs requiring fast response and reliable backup performance.
The high-rate discharge capability makes the Full-Tab 26650 cell suitable for mobile robots and automated material handling equipment.
Designed for UPS battery packs requiring stable power delivery, high discharge capability and reliable backup performance.
The Full-Tab LiFePO₄ cell provides high-rate power for demanding portable and outdoor equipment.
| Type | Model | Charging current | Max Discharge current | Internal Resistant | 25℃ Cycle life | Size | Temp. Range |
| LFP High-temp.Type | JGTFR18650-1600mAh-3.2V(18FT-5.12Wh) | 1C | 3C (4.8A) | ≤25mΩ | 2000 times（100%DOD） 4000 times（80%DOD） 7000 times（50%DOD） 60℃2000times(100%DOD) | h:65.2±0.3mm d: ≤18.60mm | Charge: 0℃~75℃ Discharge: -30℃~75℃ |
| JGTFR26650-4000mAh-3.2V(26FT-12.8Wh) | 1C | 3C (12A) | ≤20mΩ | 2000 times（100%DOD） 4000 times（80%DOD） 7000 times（50%DOD） 60℃2000times(100%DOD) | h:65.7±0.3mm d: ≤26.45mm | Charge: 0℃~75℃ Discharge: -30℃~75℃ | |
| LFP Power Rate Type | JGPFR18650-1100mAh-3.2V(18FP-3.52Wh) | 5C | 30C (33A) | ≤18mΩ | 500times（100%DOD） 1000times（80%DOD） 3000times（50%DOD） | h:65.2±0.3mm d: ≤18.60mm | Charge: 0℃~60℃ Discharge: -30℃~65℃ |
| JGPFR26650-3000mAh-3.2V(26FP-9.6Wh) | 3C | 10C (30A) | ≤15mΩ | 1500 times（100%DOD） 3000 times（80%DOD） 5000 times（50%DOD） | h:65.7±0.3mm d: ≤26.45mm | Charge: 0℃~60℃ Discharge: -30℃~65℃ | |
| JGPFR26650P-3000mAh-3.2V（26FP(P)-9.6Wh ） | 3C | 20C (60A) | ≤5mΩ | 1500 times（100%DOD) /2C10C 3000 times（100%DOD) /1C1C | h:65.7±0.3mm d: ≤26.45mm | Charge: 0℃~60℃ Discharge: -30℃~65℃ | |
| LFP Capacity Type | JGCFR18650-1600mAh-3.2V(18FC-5.12Wh) | 1C | 3C (4.8A) | ≤25mΩ | 2000times（100%DOD） 4000times（80%DOD） 7000times（50%DOD） | h:65.2±0.3mm d: ≤18.60mm | Charge: 0℃~60℃ Discharge: -30℃~65℃ |
| JGCFR18650-1800mAh-3.2V(18FC-5.76Wh) | 1C | 3C (5.4A) | ≤25mΩ | 2000times（100%DOD） 4000times（80%DOD） 7000times（50%DOD） | h:65.2±0.3mm d: ≤18.60mm | Charge: 0℃~60℃ Discharge: -30℃~65℃ | |
| JGCFR18650-2200mAh-3.2V(18FC-7.04Wh) | 0.5C | 3C (6.6A) | ≤25mΩ | 1500times（100%DOD） 2000times（80%DOD） 3000times（50%DOD） | h:65.2±0.3mm d: ≤18.60mm | Charge: 0℃~60℃ Discharge: -20℃~65℃ | |
| JGCFR26650-3400mAh-3.2V(26FC-10.88Wh) | 1C | 3C (10.2A) | ≤25mΩ | 2000times（100%DOD） 4000times（80%DOD） 7000times（50%DOD） | h:≤65.4mm d: ≤26.45mm | Charge: 0℃~60℃ Discharge: -30℃~65℃ | |
| JGCFR26650-3600mAh-3.2V(26FC-11.52Wh) | 1C | 3C (10.8A) | ≤25mΩ | 2000times（100%DOD） 4000times（80%DOD） 7000times（50%DOD） | h: 65.7±0.3mm d: ≤26.45mm | Charge: 0℃~60℃ Discharge: -30℃~65℃ | |
| JGCFR26650-4000mAh-3.2V(26FC-12.8Wh) | 1C | 3C (12A) | ≤20mΩ | 2000times（100%DOD） 4000times（80%DOD） 7000times（50%DOD） | h: 65.7±0.3mm d: ≤26.45mm | Charge: 0℃~60℃ Discharge: -30℃~65℃ | |
| JGCFR26650-4500mAh-3.2V(26FC-14.4Wh) | 0.5C | 3C (13.5A) | ≤20mΩ | 2000times（100%DOD） 3000times（80%DOD） 5000times（50%DOD） | h: 65.7±0.3mm d: ≤26.45mm | Charge: 0℃~60℃ Discharge: -20℃~65℃ | |
| NCM Capacity Type | JGCNR18650-2200mAh-3.6V(18NC-7.92Wh) | 1C | 3C(6.6A) | ≤25mΩ | 1000times（100%DOD） 1500times（80%DOD） 3000times（50%DOD） | h: 65.2±0.3mm d: ≤18.60mm | Charge: 0℃~60℃ Discharge: -40℃~65℃ |
| JGCNR18650-2600mAh-3.6V(18NC-9.36Wh) | 0.5C | 3C(7.8A) | ≤25mΩ | 1000times（100%DOD） 1500times（80%DOD） 2000times（50%DOD） | h: 65.2±0.3mm d: ≤18.60mm | Charge: 0℃~60℃ Discharge: -40℃~65℃ | |
| JGCNR26650-5000mAh-3.6V(26NC-18Wh) | 1C | 2C(10A) | ≤25mΩ | 1000times（100%DOD） 2000times（80%DOD） 3000times（50%DOD） | h: 65.7±0.3mm d: ≤26.45mm | Charge: 0℃~60℃ Discharge: -40℃~65℃ |
