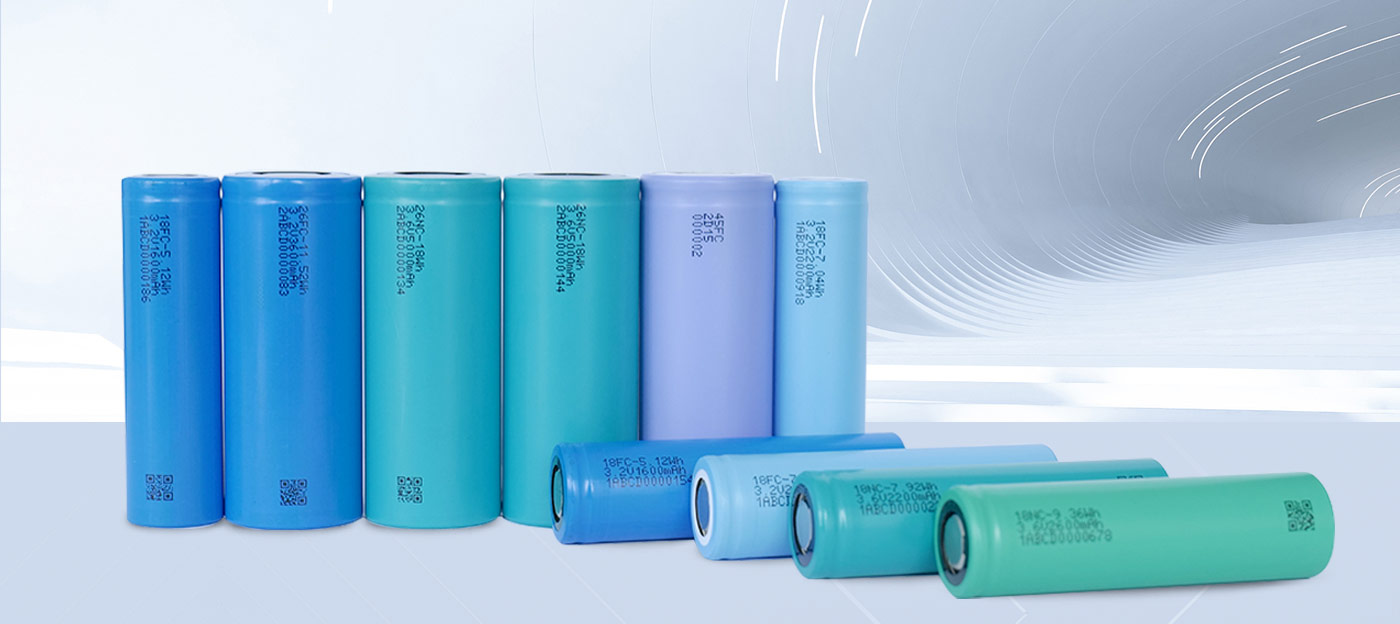

18650 & 26650 LiFePO4 Lithium Battery

Goldencell is a manufacturer with 16 years of experience in battery manufacturing, mainly producing capacity type, rate type, high temperature type, three capacity type battery cell and battery cathode materials, the main models are 18650 and 26650. Our lithium battery cell is widely used, mainly used in emergency lights, home storage, robots, golf carts, search and rescue boats, drones and other fields. Compared to other batteries, lithium batteries have a higher energy density, can run longer, and require less charging time. In addition, they last longer, are cheaper to replace and perform better in extreme temperatures.

Automotive-Grade Cells

Utilize our made LiFePO4 battery cell are Automotive -Grade, ensure superior quality and higher energy density, supporting 100% Depth of Discharge (DOD) and 100% State of Charge (SOC).

Technological innovation capability

A strong R&D team composed of professional core technical backbones, continuously promoting technology upgrades and product iterations.

No “memory effect”

The smaller the discharge, the more cycles; our batteries are not sensitive to microcycles

Built-in Battery Management System (BMS)

LFP batteries have a significantly longer lifespan compared to lead-acid batteries. While lead-acid batteries typically last around 3-5 years, LFP batteries can last 10 years or more, depending on usage and maintenance.

Excellent product performance

The advanced thermal management system and protection mechanism are adopted to ensure the safety of the product in various complex environments.

Wide temperature design

Erom -20°C to +65°C: JGNE system is still the technical choice for harsh environments.

Advantages

Lithium batteries have multiple advantages in the field of light power, including but not limited to light weight, small size, long life, wide operating temperature range, short charging time, environmental protection and high safety. These advantages make lithium batteries an ideal choice for light electric vehicles and other light power equipment.

Custom Built Service

With continuous growth and proven success since 2008, Goldencell is now specialized in providing customized superior lithium-ion battery products and solutions to professional customers around the world.

	Model	Charging current	Max Discharge current	Internal Resistant	25℃ Cycle life	Size
LFP rated type	JGPFR26650-3000mAh-3.2V	5C	10C(30A)	≤15mΩ	1500times-100%DOD 3000times-80%DOD 5000times-50%DOD	h: 65.7±0.3mm d: ≤26.45mm
LFP rated type	JGPFR18650-1100mAh-3.2V	10C	30C(33A)	≤18mΩ	500times-100%DOD 1000times-80%DOD 3000times-50%DOD	h:65.2±0.3mm d: ≤18.60mm
LFP high temperature type	JGTFR18650-1600mAh-3.2V	1C	3C(4.8A)	≤25mΩ	3500 times（100%DOD） 4000 times（80%DOD） 7000 times（50%DOD） 60℃ 2000times(100%DOD)	h:65.2±0.3mm d: 18.60mm
LFP capacity type	JGCFR18650-1600mAh-3.2V	1C	3C(4.8A)	≤25mΩ	2000times-100%DOD 4000times-80%DOD 7000times-50%DOD	h:65.2±0.3mm d: 18.60mm
	JGCFR18650-1800mAh-3.2V	1C	3C(5.4A)	≤25mΩ	2000times-100%DOD 4000times-80%DOD 7000times-50%DOD	h:65.2±0.3mm d: ≤18.60mm
	JGCFR18650-2200mAh-3.2V	1C	3C(6.6A)	≤25mΩ	1500times-100%DOD 2000times-80%DOD 3000times-50%DOD	h:65.2±0.3mm d: ≤18.60mm
	JGCFR26650-3400mAh-3.2V	1C	3C(10.2A)	≤25mΩ	2000times-100%DOD 4000times-80%DOD 7000times-50%DOD	h:≤65.4mm d: ≤26.45mm
	JGCFR26650-3600mAh-3.2V	1C	3C(10.8A)	≤25mΩ	2000times-100%DOD 4000times-80%DOD 7000times-50%DOD	h: 65.7±0.3mm d: ≤26.45mm
	JGCFR26650-4000mAh 3.2V	1C	3C(12A)	≤20mΩ	2000times-100%DOD 4000times-80%DOD 7000times-50%DOD	h: 65.7±0.3mm d: ≤26.45mm
	JGCFR26650-4500mAh 3.2V	1C	3C(13.5A)	≤20mΩ	2000times-100%DOD 3000times-80%DOD 5000times-50%DOD	h: 65.7±0.3mm d: ≤26.45mm
NCM capacity type	JGCNR18650-2200mAh-3.6V	1C	3C(6.6A)	≤25mΩ	1000times-100%DOD 1500times-80%DOD 3000times-50%DOD	h: 65.2±0.3mm d: ≤18.60mm
	JGCNR18650-2600mAh-3.6V	1C	3C(7.8A)	≤25mΩ	1000times-100%DOD 1500times-80%DOD 2000times-50%DOD	h: 65.2±0.3mm d: ≤18.60mm
	IGCNR26650-5000mAh-3.6V	1C	2C(10A)	≤25mΩ	1000times-100%DOD 2000times-80%DOD 3000times-50%DOD	h: 65.7±0.3mm d: ≤26.45mm

18650 & 26650 LiFePO4 Lithium Battery

Automotive-Grade Cells

Technological innovation capability

No “memory effect”

Built-in Battery Management System (BMS)

Excellent product performance

Wide temperature design

Advantages

Custom Built Service

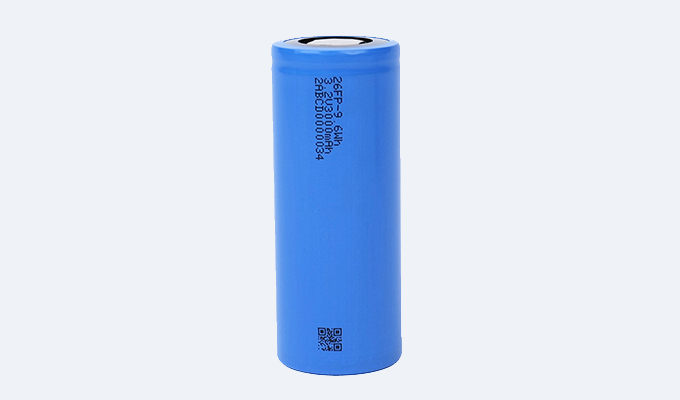

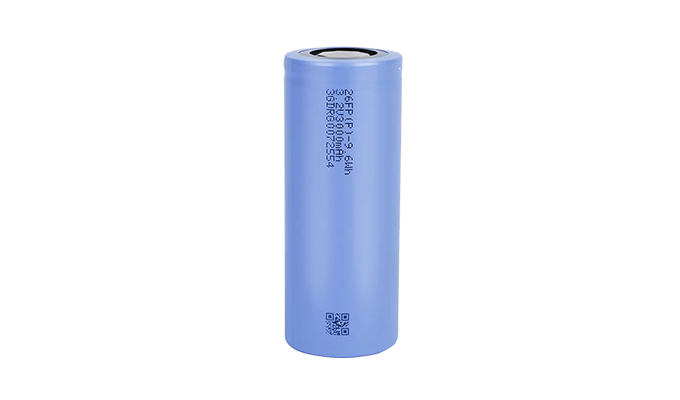

JGPFR26650-3000mAh-3.2V cells

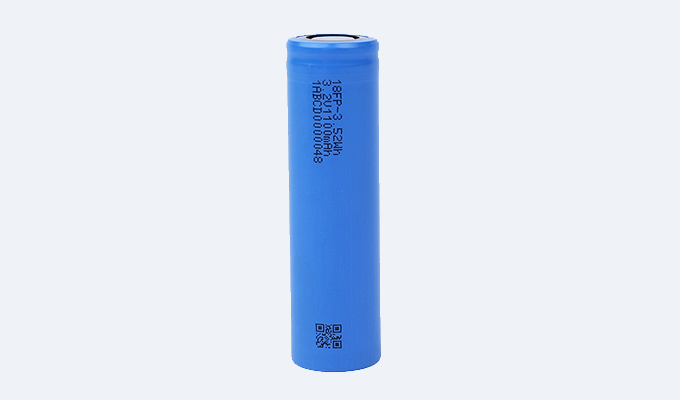

JGPFR18650-1100mAh-3.2V cells

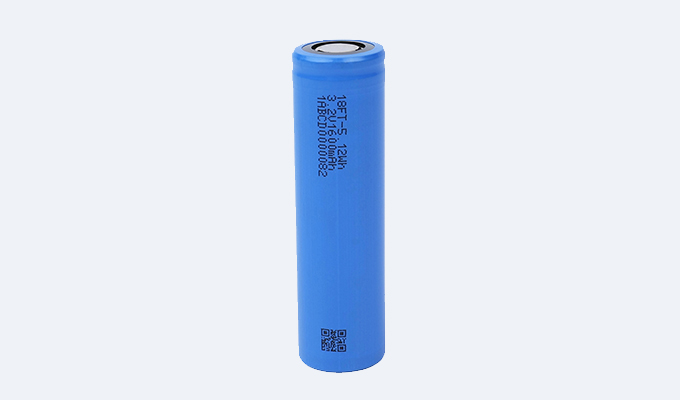

JGTFR18650-1600mAh-3.2V cells

JGCFR18650-1600mAh-3.2V cells

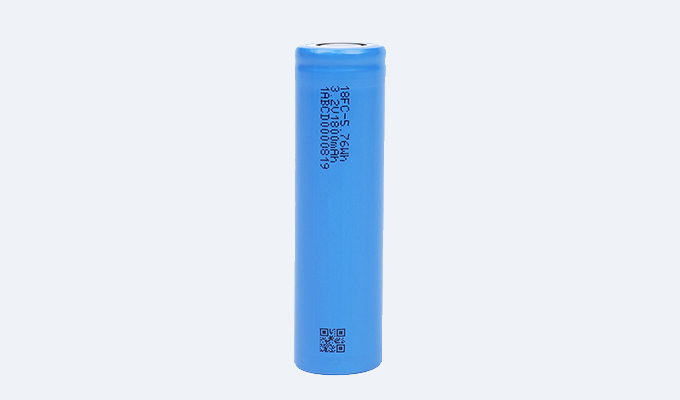

JGCFR18650-1800mAh-3.2V cells

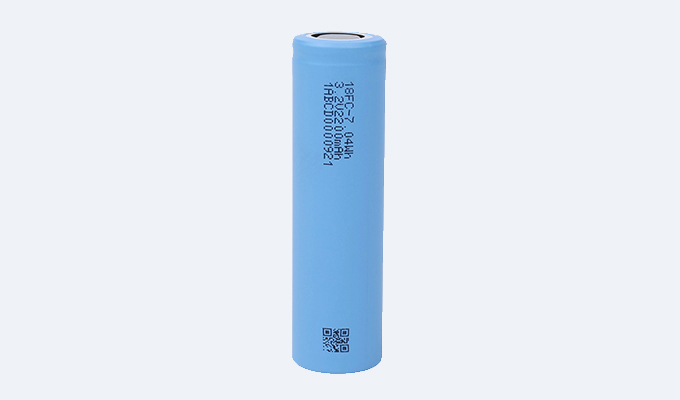

JGCFR18650-2200mAh-3.2V cells

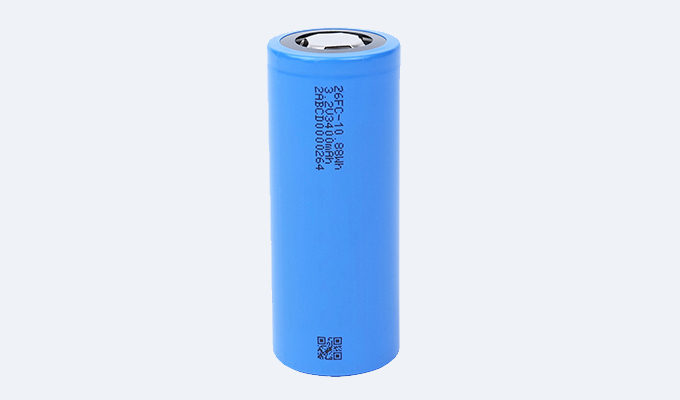

JGCFR26650-3400mAh-3.2V cells

JGCFR26650-3600mAh-3.2V cells

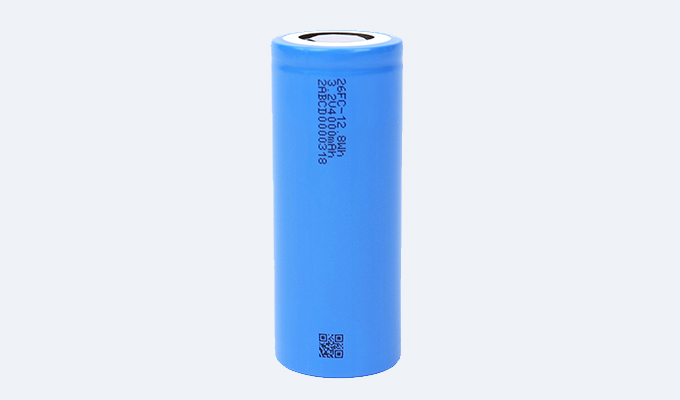

JGCFR26650-4000mAh 3.2V cells

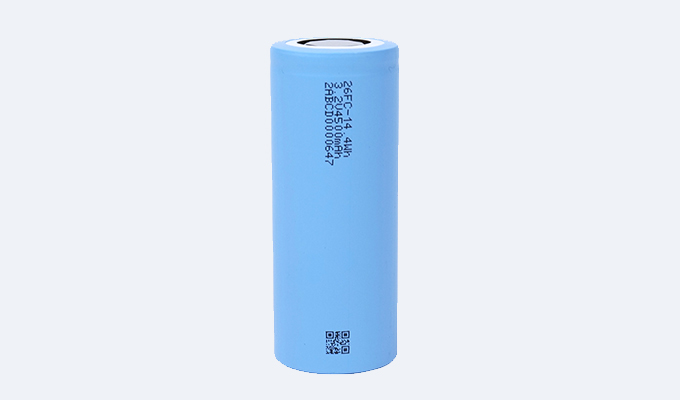

JGCFR26650-4500mAh 3.2V cells

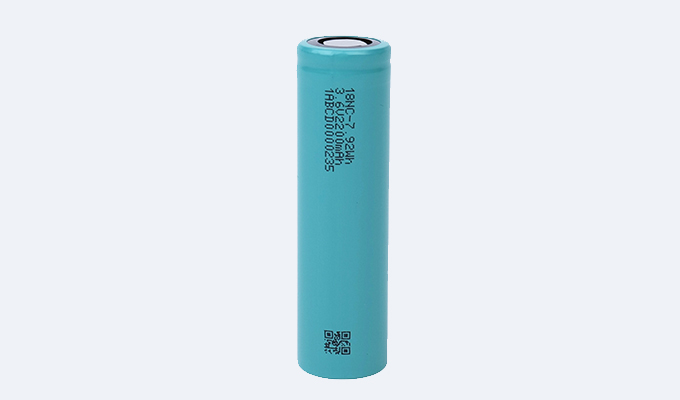

JGCNR18650-2200mAh-3.6V cells

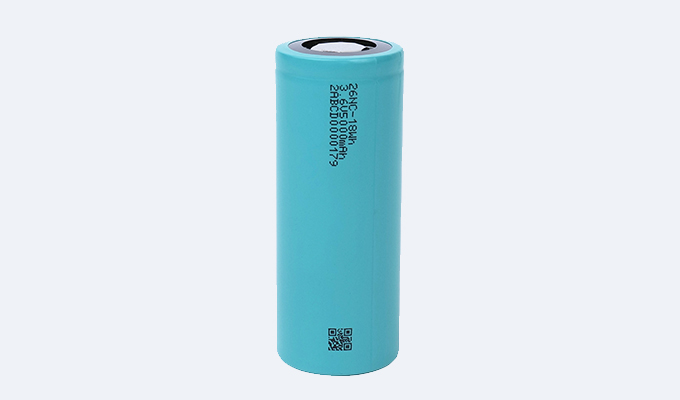

IGCNR26650-5000mAh-3.6V cells

Materials Digital Plant

Covers an area of 17826 ㎡. 20,000 tons of LiFePO4 material productive capacity
