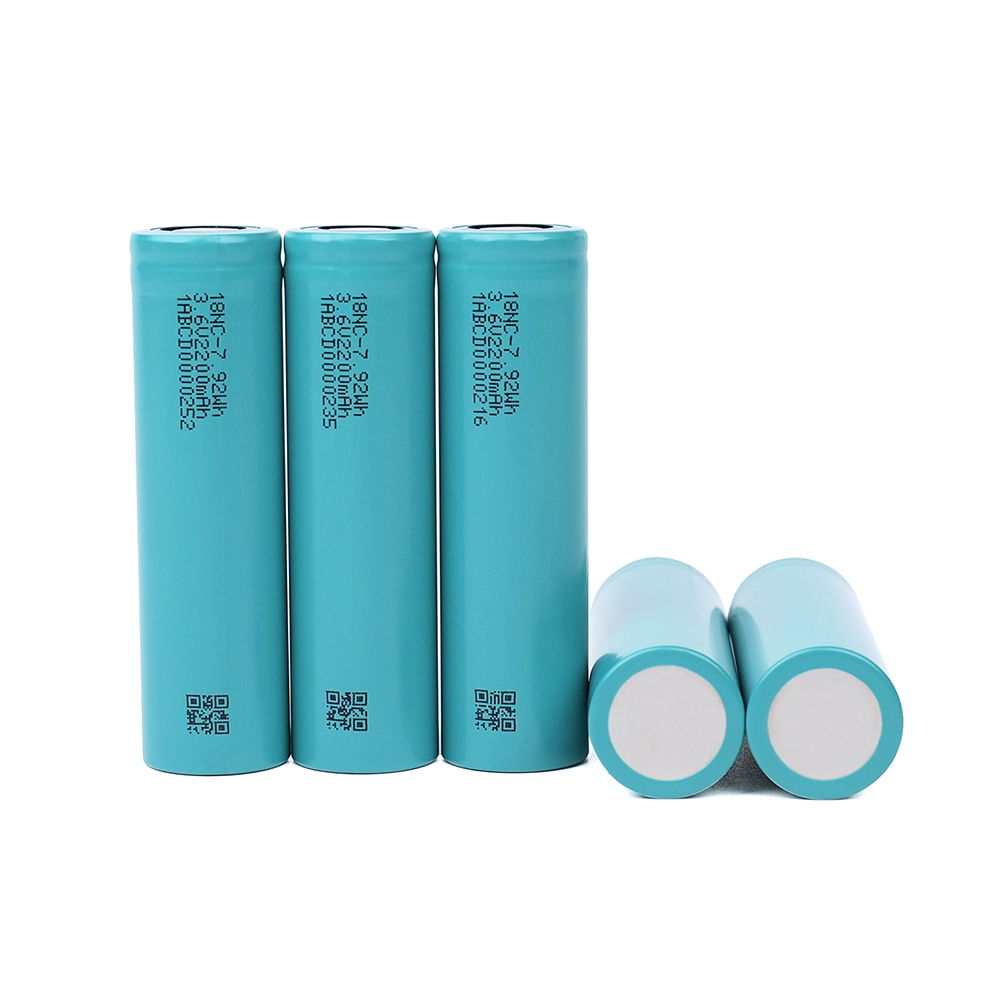

JGCNR18650-2200mAh-3.6V NCM Battery Cells

Lightweight, high-energy, efficient, and reliable NCM battery.

Nominal voltage: 3.6V

Nominal capacity: 2.2Ah

Cell type / Chemistry: Cylindrical -NCM

Dimensions (DxH): (18.6)×(65.20±0.30)mm

Weight: 43g

Cycle life: ≥1500@0.5C（80%DOD）

Certification:IEC62133,RoHS,CE,UN38.3,BIS,UL1642,REACH,3C,Regulation (EU)No 2023/1542

High Energy Density—NCM battery cells

Our 18650-2200mAh-3.6V NCM battery cells are designed to deliver high energy density and stable performance. By utilizing advanced formulations and processes, these cells ensure safety, consistency, and reliable energy output. They are ideal for applications requiring compact size and high energy capacity, maintaining excellent performance under demanding conditions.

Automotive-Grade Cells

Utilize our made NCM Battery Cells are Automotive -Grade, ensure superior quality and higher energy density, supporting 100% Depth of Discharge (DOD) and 100% State of Charge (SOC).

High Energy Density

18650-2200mAh-3.6V NCM Battery Cells Lightweight and provides extended runtime, ideal for portable devices.

Wide Temperature Adaptability

18650-2200mAh-3.6V NCM Battery Cells have Strong thermal stability, high decomposition temperature, not prone to thermal runaway, and reduce the risk of explosion and combustion.

Excellent safety performance

The formula, structure and process design with safety as the core have achieved a combination of safety, consistency and long life, and are at the forefront of the industry;

Good random combination

NCM Battery Cells have good random combination, which is more advantageous than square and soft packs.

Environmental Benefits

Unlike lead-acid batteries, which contain hazardous lead and can pollute if not disposed of properly, lithium batteries are produced in an eco-friendly manner without harmful emissions.

Type	Model	Charging current	Max Discharge current	Internal Resistant	25℃ Cycle life	Size	Temp. Range
LFP High-temp.Type	JGTFR18650-1600mAh-3.2V(18FT-5.12Wh)	1C	3C (4.8A)	≤25mΩ	2000 times（100%DOD） 4000 times（80%DOD） 7000 times（50%DOD） 60℃2000times(100%DOD)	h:65.2±0.3mm d: ≤18.60mm	Charge: 0℃~75℃ Discharge: -30℃~75℃
LFP High-temp.Type	JGTFR26650-4000mAh-3.2V(26FT-12.8Wh)	1C	3C (12A)	≤20mΩ	2000 times（100%DOD） 4000 times（80%DOD） 7000 times（50%DOD） 60℃2000times(100%DOD)	h:65.7±0.3mm d: ≤26.45mm	Charge: 0℃~75℃ Discharge: -30℃~75℃
LFP Power Rate Type	JGPFR18650-1100mAh-3.2V(18FP-3.52Wh)	5C	30C (33A)	≤18mΩ	500times（100%DOD） 1000times（80%DOD） 3000times（50%DOD）	h:65.2±0.3mm d: ≤18.60mm	Charge: 0℃~60℃ Discharge: -30℃~65℃
LFP Power Rate Type	JGPFR26650-3000mAh-3.2V(26FP-9.6Wh)	3C	10C (30A)	≤15mΩ	1500 times（100%DOD） 3000 times（80%DOD） 5000 times（50%DOD）	h:65.7±0.3mm d: ≤26.45mm	Charge: 0℃~60℃ Discharge: -30℃~65℃
LFP Capacity Type	JGCFR18650-1600mAh-3.2V(18FC-5.12Wh)	1C	3C (4.8A)	≤25mΩ	2000times（100%DOD） 4000times（80%DOD） 7000times（50%DOD）	h:65.2±0.3mm d: ≤18.60mm	Charge: 0℃~60℃ Discharge: -30℃~65℃
	JGCFR18650-1800mAh-3.2V(18FC-5.76Wh)	1C	3C (5.4A)	≤25mΩ	2000times（100%DOD） 4000times（80%DOD） 7000times（50%DOD）	h:65.2±0.3mm d: ≤18.60mm	Charge: 0℃~60℃ Discharge: -30℃~65℃
	JGCFR18650-2200mAh-3.2V(18FC-7.04Wh)	0.5C	3C (6.6A)	≤25mΩ	1500times（100%DOD） 2000times（80%DOD） 3000times（50%DOD）	h:65.2±0.3mm d: ≤18.60mm	Charge: 0℃~60℃ Discharge: -20℃~65℃
	JGCFR26650-3400mAh-3.2V(26FC-10.88Wh)	1C	3C (10.2A)	≤25mΩ	2000times（100%DOD） 4000times（80%DOD） 7000times（50%DOD）	h:≤65.4mm d: ≤26.45mm	Charge: 0℃~60℃ Discharge: -30℃~65℃
	JGCFR26650-3600mAh-3.2V(26FC-11.52Wh)	1C	3C (10.8A)	≤25mΩ	2000times（100%DOD） 4000times（80%DOD） 7000times（50%DOD）	h: 65.7±0.3mm d: ≤26.45mm	Charge: 0℃~60℃ Discharge: -30℃~65℃
	JGCFR26650-4000mAh-3.2V(26FC-12.8Wh)	1C	3C (12A)	≤20mΩ	2000times（100%DOD） 4000times（80%DOD） 7000times（50%DOD）	h: 65.7±0.3mm d: ≤26.45mm	Charge: 0℃~60℃ Discharge: -30℃~65℃
	JGCFR26650-4500mAh-3.2V(26FC-14.4Wh)	0.5C	3C (13.5A)	≤20mΩ	2000times（100%DOD） 3000times（80%DOD） 5000times（50%DOD）	h: 65.7±0.3mm d: ≤26.45mm	Charge: 0℃~60℃ Discharge: -20℃~65℃
NCM Capacity Type	JGCNR18650-2200mAh-3.6V(18NC-7.92Wh)	1C	3C(6.6A)	≤25mΩ	1000times（100%DOD） 1500times（80%DOD） 3000times（50%DOD）	h: 65.2±0.3mm d: ≤18.60mm	Charge: 0℃~60℃ Discharge: -40℃~65℃
	JGCNR18650-2600mAh-3.6V(18NC-9.36Wh)	0.5C	3C(7.8A)	≤25mΩ	1000times（100%DOD） 1500times（80%DOD） 2000times（50%DOD）	h: 65.2±0.3mm d: ≤18.60mm	Charge: 0℃~60℃ Discharge: -40℃~65℃
	JGCNR26650-5000mAh-3.6V(26NC-18Wh)	1C	2C(10A)	≤25mΩ	1000times（100%DOD） 2000times（80%DOD） 3000times（50%DOD）	h: 65.7±0.3mm d: ≤26.45mm	Charge: 0℃~60℃ Discharge: -40℃~65℃
