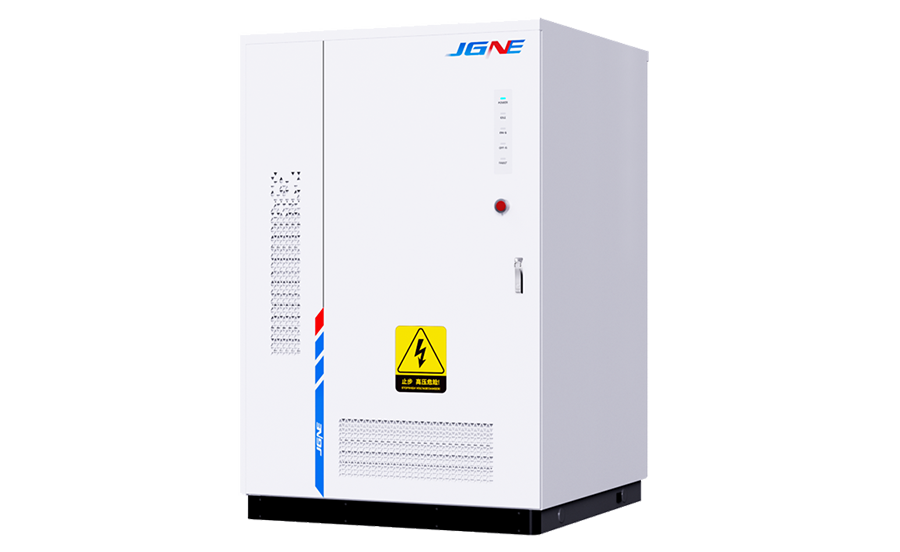

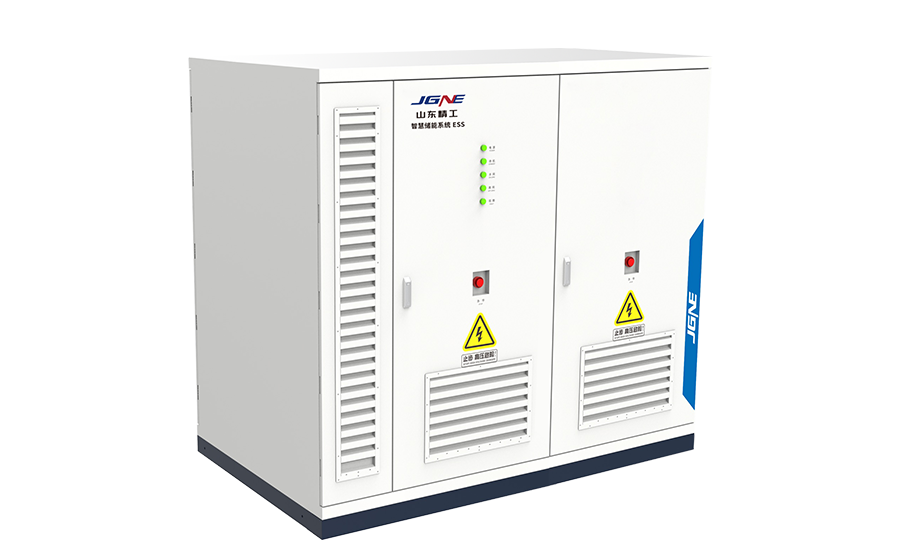

JGNE 120KW 233 Small Energy Storage Cabinet

The JGNE 120kW 233 Small Energy Storage Cabinet is a compact and efficient energy storage solution designed for various applications, including commercial and industrial settings. While specific details about this exact model are limited, similar energy storage cabinets offer insights into its potential features and benefits.
The cabinet’s advanced Battery Management System (BMS) enhances safety and performance, while its compact design allows easy installation in limited spaces. Its fast charging capability and remote monitoring support efficient management.
Overall, the JGNE 120KW 233 cabinet is a reliable, scalable, and sustainable energy storage solution, ideal for supporting green energy initiatives and improving power efficiency.

High Energy Density

With a storage capacity of approximately 233 kWh, this cabinet provides substantial energy storage in a compact footprint, making it suitable for environments where space is at a premium.

Modular and Scalable

The modular architecture allows for flexible expansion, enabling users to increase storage capacity and power output as needed. This adaptability is crucial for businesses anticipating growth or fluctuating energy demands.

Safety and Reliability

Incorporating high-quality LiFePO4 cells, the system ensures safety and reliability. Features like overcharge protection, thermal management, and integrated fire suppression systems (e.g., NOVEC1230 or aerosol-based) are standard to prevent overheating and ensure system stability.

Integrated Design

These cabinets typically combine lithium iron phosphate (LiFePO4) battery systems, bidirectional inverters, temperature control systems, and fire protection mechanisms into a single, cohesive unit.

Advanced Cooling Systems

Equipped with efficient cooling solutions, such as liquid cooling, these cabinets maintain optimal operating temperatures, thereby enhancing performance and prolonging battery lifespan.

Smart Monitoring and Control

Many energy storage cabinets offer intelligent monitoring and control systems, including 24/7 cloud-based management platforms. These systems provide real-time data on performance, enable remote diagnostics, and facilitate efficient energy management.

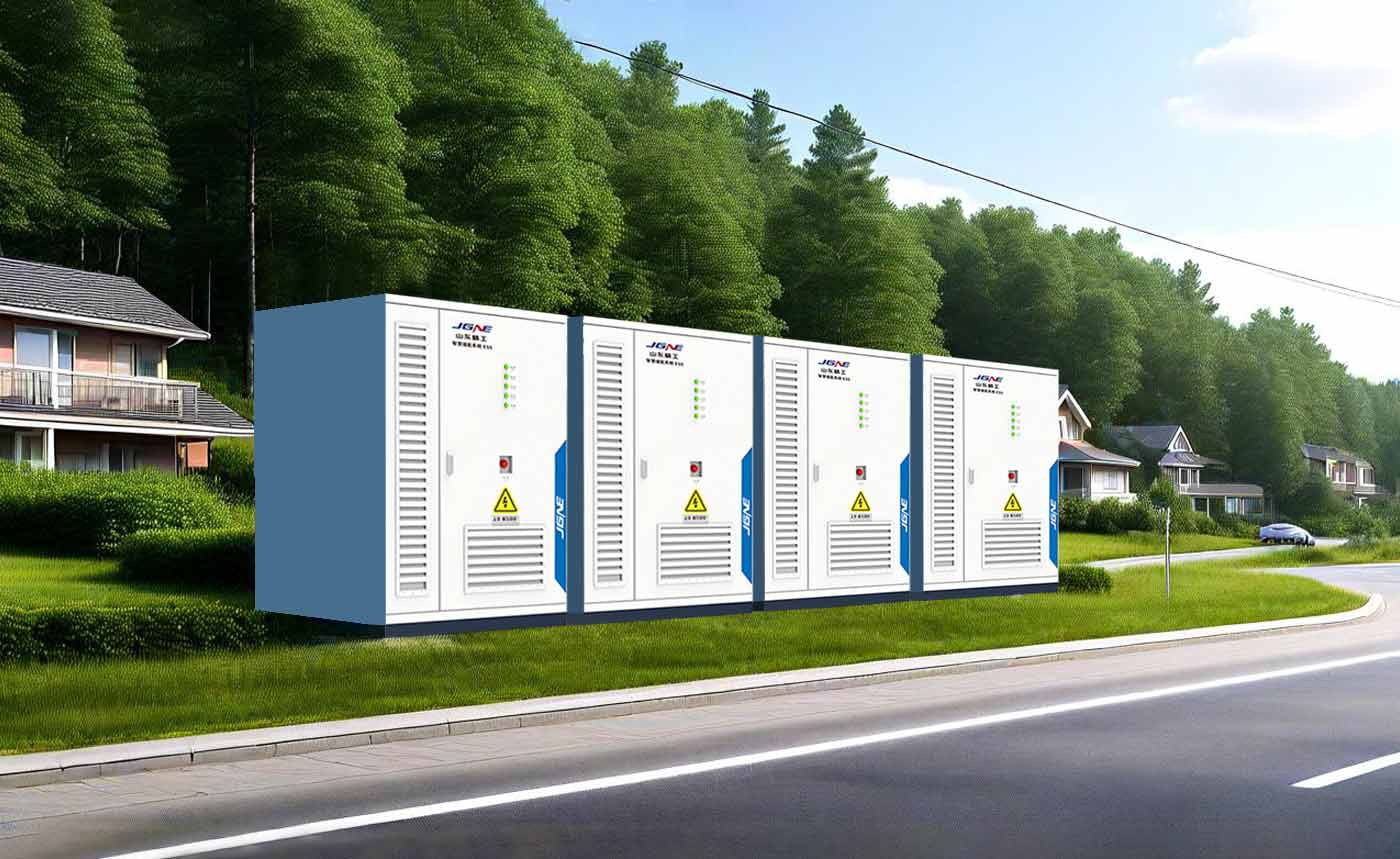

Applications

The JGNE 120KW 233 Small Energy Storage Cabinet is a compact and efficient energy storage solution designed for various commercial, industrial, and residential applications. With its 120KW power output and modular lithium-ion battery system, it offers reliable energy storage for diverse needs.

In renewable energy systems, it stores excess solar or wind energy, ensuring a stable power supply during peak demand or nighttime. For commercial and industrial facilities, it helps reduce electricity costs through peak shaving and load balancing. Additionally, it provides backup power during outages, ensuring business continuity and protecting critical operations.

Customized service

The JGNE 120KW 233 Small Energy Storage Cabinet offers customizable solutions to meet diverse energy storage needs. Supporting custom configurations, it allows users to tailor battery capacity, voltage ranges, and BMS settings for specific applications. Ideal for commercial, industrial, and renewable energy storage, it integrates high-efficiency lithium-ion cells and an advanced battery management system for optimal performance and safety.

System Parameters
Name	Technical parameters	Remarks
Rated discharging power	120 kW
Rated charging power	120 kW
Rated energy storage capacity	233 kWh
Type of the energy storage battery	LiFePO4
Energy conversion efficiency	≥86 %
Charge-discharge switching time	≤100 ms
Way to form battery packs	1P52S
Way to form single cluster	1P260S
Adjustable power factor range	-1 (lead) 1 (lag)
Inverter efficiency	≥96 % (50% or more load)
DC system parameters
Name	Technical parameters	Remarks
Rated voltage	832 Vdc
Operation voltage range	600~1000 Vdc
Charging management	Three-stage charging
Max. DC power	120 kW	Single channel
Max. DC current	185 A	Single channel
AC system parameters
Name	Technical parameters	Remarks
Rated grid voltage	380 V
Allowable grid voltage range	380 V±15% V
Rated grid frequency	50 Hz
Allowable grid frequency range	47.5~52.5 Hz
Rated power factor	>0.99
SCR static switch (optional)
Name	Technical parameters	Remarks
Rated power	200 kW
Rated voltage	0.4 kV
Rated current	400 A
Switching time between connected-grid and off-grid	≤10 ms
Cabinet parameters
Name	Technical parameters	Remarks
External dimensions(W×D×H)	1400×1500×2200 mm	233kWh*N（N≤10）
Installation mode	Cement base or channel steel
Protection level	IP55
Thermal management technology	Liquid cooling
Weight	2.5 t
