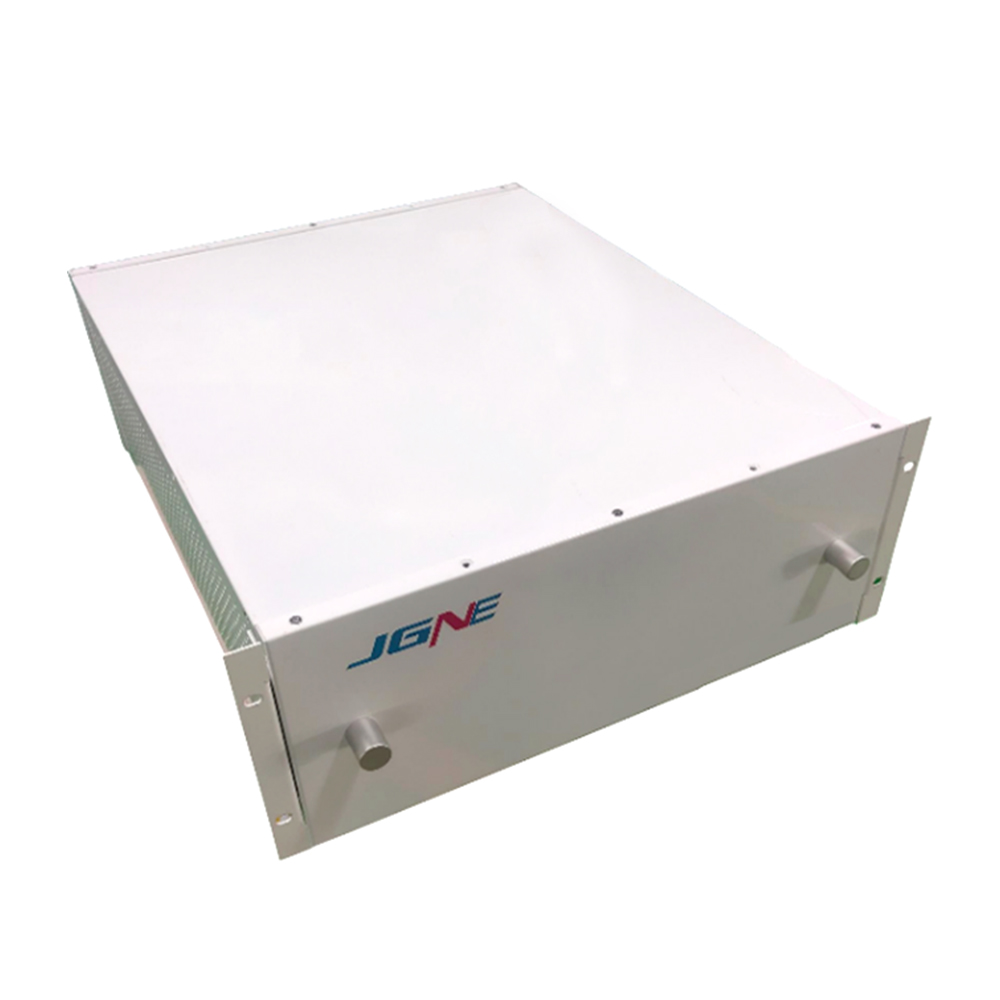

ESS Module

Goldencell battery storage module adopts standard module embedded design, which is convenient for installation and maintenance. With the reliable BMS system and high-performance equalization technology, the energy storage system has extremely high safety and high reliability.

ESS Module

Applications

It is applied to household and industrial and commercial energy storage, providing them with large-capacity and stable energy storage. Help them save electricity and provide emergency power, etc.

Product Features

Modular design

Easy Installation

10+ Years Operating Life

Flexible Capacity Expansion

Extraordinary Performance

Uninterrupted Power Supply Abilit

Items	51.2V120Ah	51.2V80Ah
Nominal Voltage	51.2V	51.2V
Rated Capacity	120Ah	80Ah
Min. Capacity	115Ah	77Ah
Energy	About 6KWH	bout 4KWh
Size	About 483mm177mm550mm	About 710mm523mm88mm
Weight	About 58kg	About 40kg
Charge Voltage	57.6V（max.57.8V）	57.6V（max.57.8V）
Charge Current	24A	16A
Max. Charge Current	50A	40A
Max. Discharge Current	50A	40A
Discharge Cut-off Voltage	About 40V	About 40V
Protection Circuit	Overcharge Protection，Overdischarge Protection, Temperature Protection, Equalization Function, Communication Function	Overcharge Protection，Overdischarge Protection, Temperature Protection, Equalization Function, Communication Function
Positive	Connector in Orange	Connector in Red
Negative	Connector in Black	Connector in Black
Communication Function	RS485	RS485/CAN
Metal case color	White	Black
